Coating options
Six coatings with published performance data, and seven further codes in the SurfTech range.
How to choose a coating
Abrasion points at the boron carbide films. Galling and adhesion point at the films with a lubricating phase. Impact and corrosion point at chromium nitride, and general tooling duty at titanium nitride. The substrate then decides how thick the film can be.
Every PVD code in the range is applied below 200 °F, so the substrate is rarely the thing that rules a coating out. PTFE is the exception: it is spray applied and cured through the Euclid Refinishing line.
A ductile, corrosion resistant film for forming and molding work.
View coating
Among the hardest thin films available, for abrasive contact.
View coating
A hard load bearing structure under a lubricating phase.
View coating
A dry solid lubricant with the lowest friction in the range.
View coating
The reference PVD film for general tooling, in gold.
View coating
A fluoropolymer release film, applied through Euclid Refinishing.
View coating
Coating series
The first digit of a code identifies the coating family.
Ductile films for forming and molding.
Maximum hardness against abrasive wear.
Solid lubricant for dry running contact.
General purpose tooling films.
Engineered stacks for specific applications.
Additional catalog codes
Seven further codes in the SurfTech range. Certified data sheets for these are issued with the quote.
Parts we coat

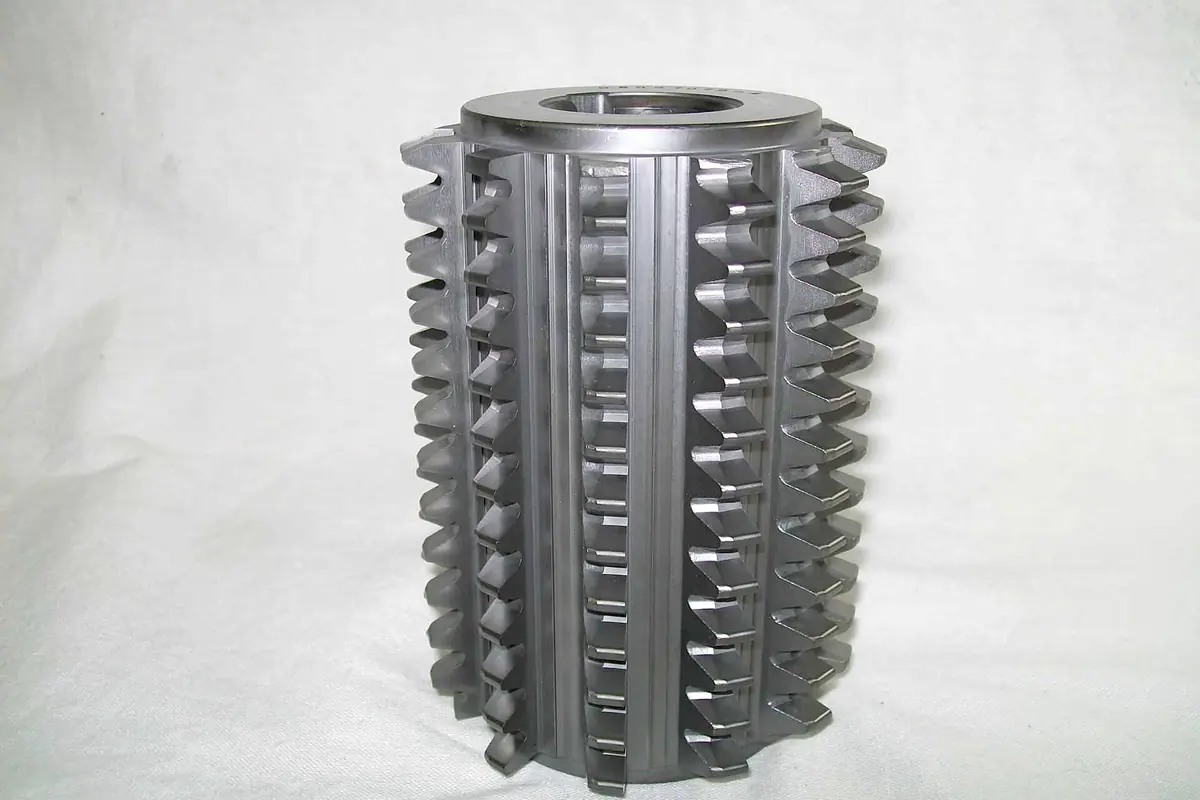

Cutting tools are the obvious case. The rest of the work is production components, where the film is bought for friction, corrosion or dimensional stability rather than for edge life.
Rolling and sliding contact, often running hotter and drier than the design allowed for. Friction is the lever here.
Ground geometry that has to survive the coating. A film one to four microns thick leaves the tolerance intact.

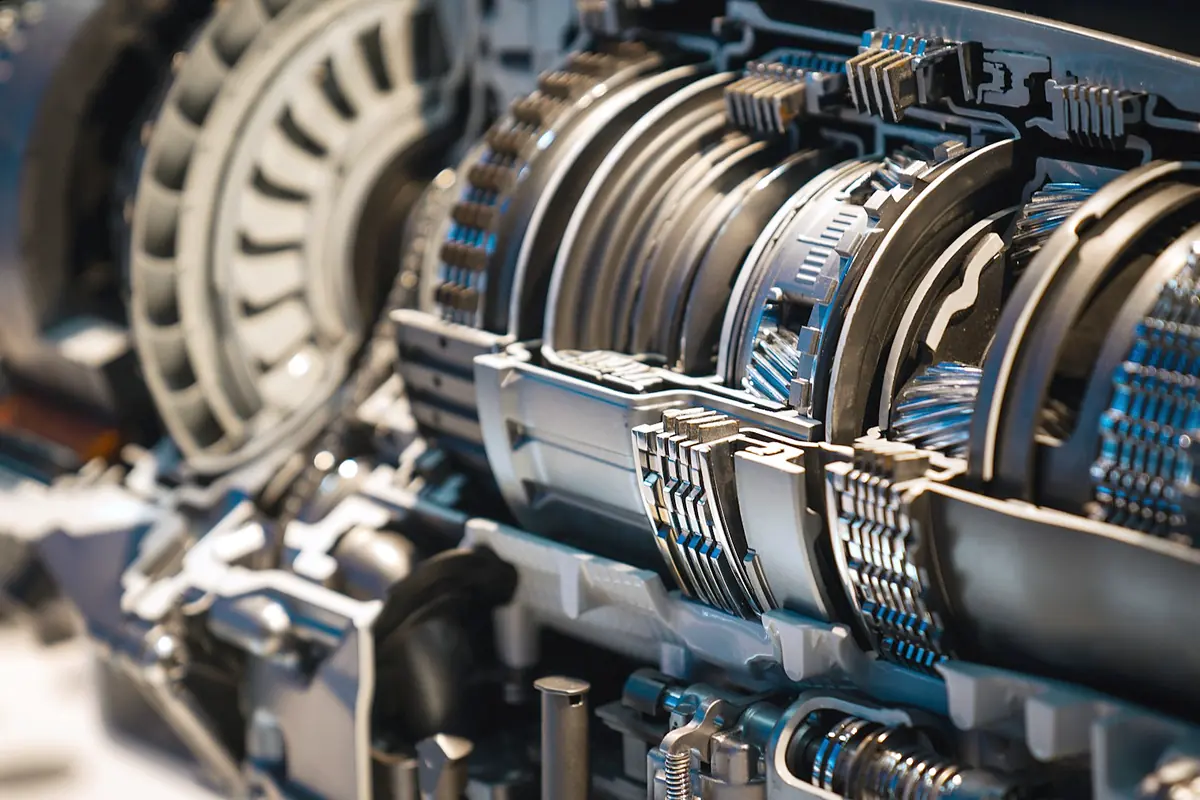

Loaded contact under heat, where a lubricating phase buys back the margin that removing oil took away.
Request a quote
Abrasion, galling, chipping, corrosion and heat each point at a different chemistry. Send the part and the duty.
